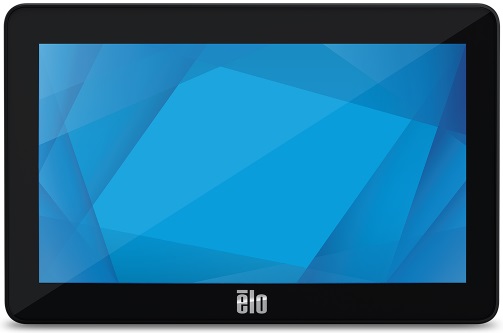

7 Inch Elo 0702L Touch Screen Monitor ET0702L
 |
|
Elo 0702L 7 Inch Retail Touch Screen Monitor |
|
|
The Elo 0702L 7-inch touchscreen monitor offers the same seamless design that spans the entire Elo 02-Series lineup. With a form factor only half an inch thin and a design tailored for ease of integration, the 0702L thrives in customer-facing installations in point-of-sale, brand-loyalty, point-of- information, signage and hospitality applications. With a slim footprint, the 0702L is also well-suited for industrial kitchen equipment controllers and kitchen display systems. |
|
- Specifications
- Overview
- Accessories
- Support
- Warranty
| Model | Elo 0702L 7" Touchscreen Monitor |
| Part Number(s) | TouchPro PCAP (Worldwide) - E796382 |
| Enclosure Color | Black |
| Touch Technology & Capacity | PCAP (TouchPro Projected Capacitive) - 10 Touch |
| Diagonal Size | 7'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 5:3 |
| Active Area (mm) | 6.07'' x 3.38'' / 154.08 mm x 85.92 mm |
| Resolution | 800 x 480 |
| Other Supported Resolutions | 800 x 480 60 Hz |
| Viewing Angle | Horizontal: 75° or 150° total / Vertical: 55°/65° or 120° total |
| Number of Colors | 16.2 million |
| Brightness (typical) | Panel: 500 nits; TouchPro PCAP: 430 nits |
| Response Time-total (typical) | 25 msec |
| Contrast Ratio | 500:1 |
| Touch Interface | USB |
| Surface Treatment | Anti-glare |
| I/O Ports | 1 x Micro USB |
| Input Video Frequency | Horizontal: 31.5K KHz Vertical: 60Hz |
| Power | Input connector: Micro-USB Input signal specifications: 5 V ±5% |
| Power Consumption (typical) | Monitor + adapter ON: 3.7W SLEEP: 0.9W OFF: 1.9W |
| Monitor Dimensions (without Stand) | 4.61" x 7.11" x 0.7"' / 117.22 mm x 180.58 mm x 17.7 mm |
| Shipping Box Dimensions | 6.69" x 9.13" x 3.74" / 170 mm x 232 mm x 95 mm |
| Weight (Unpackaged) | 0.77 lbs / 0.35 kg |
| Weight (Packaged)) | 1.43 lbs / 0.65 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%; Storage: 10% to 95% |
| Mounting Options | VESA 75mm x 75mm |
| Other Features | IK06 impact compliant |
| Warranty | 3-year |
| Extended Warranty Options | 4 year warranty coverage - Elo P/N: E898247 5 year warranty coverage - Elo P/N: E898449 3 year warranty coverage + AUR - Elo P/N: E898648 4 year warranty coverage + AUR - Elo P/N: E894921 5 year warranty coverage + AUR - Elo P/N: E895125 |
| Regulatory approvals and declarations | Canada cUL, IC China CCC Europe CE United Kingdom UKCA United States FCC, UL Japan VCCI International CB Australia RCM Mexico NOM Korea, KCC Taiwan BSMI |
| Ingress Protection | IP65 |
| What's in the Box | Touchmonitor Micro USB Y-cable Quick Install Guide |
| Optional PCAP Stylus Pen | E066148 |
| Stands, Mounts & Kits | Elo Backpack - Elo P/N: E611864 Elo Backpack 3.0 - Elo P/N: E901355 Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104 Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382 2.5m Cable Kit - Elo P/N: E796577 |
The Elo 0702L 7-inch touchscreen monitor offers the same seamless design that spans the entire Elo 02-Series lineup. With a form factor only half an inch thin and a design tailored for ease of integration, the 0702L thrives in customer-facing installations in point-of-sale, brand-loyalty, point-of- information, signage and hospitality applications. With a slim footprint, the 0702L is also well-suited for industrial kitchen equipment controllers and kitchen display systems.
Single Cable Connection
Using DisplayLink technology, the 0702L provides a single-cable solution that combines power, video and touch signals into one USB connection. By reducing the number of cables from 3 to 1, installation is a breeze, and you never have to worry about a power adapter again.
DisplayLink technology supports Windows, Android and Linux operating systems.
Well-Suited for...
Every business is different. Whether you need a customer-facing, point-of-sale touchscreen to display a transaction or an interactive display in a restaurant to enable guests to view the menu and make their orders, the 0702L provides the features to meet your installation needs with a modern, sleek aesthetic.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
- 10 touch Elo TouchPro PCAP Technology
- DisplayLink technology allows power, video and touch through USB
- Optional field-installable 3 stripe MSR
- Optional field-installable web camera
- Up to 800 x 480 60 Hz
- Sealed touch screen
- VESA mounting option
- Worldwide agency approvals
- Three-year warranty
 |
 |
| EloPOS Pack 2 Computer Module | Elo Backpack 4.0 |
| Elo Computer Module | Part # |
| EloPOS Pack 2 No OS, Celeron, 8GB RAM, 128GB SSD, Q670 Chipset | E198884 |
| EloPOS Pack 2 Windows 10, Celeron, 8GB RAM, 128GB SSD, Q670 Chipset | E261603 |
| EloPOS Pack 2 No OS, Core i3, 8GB RAM, 256GB SSD, Q670 Chipset | E261806 |
| EloPOS Pack 2 Windows 10, Core i3, 8GB RAM, 256GB SSD, Q670 Chipset | E262004 |
| EloPOS Pack 2 No OS, Core i5, 8GB RAM, 256GB SSD, Q670 Chipset | E262189 |
| EloPOS Pack 2 Windows 10, Core i5, 8GB RAM, 256GB SSD, Q670 Chipset | E262377 |
| EloPOS Pack 2 No OS, Core i5, 16GB RAM, 256GB SSD, Q670 Chipset | E262561 |
| EloPOS Pack 2 Windows 10, Core i5, 16GB RAM, 256GB SSD, Q670 Chipset | E262761 |
| EloPOS Pack 2 No OS, Core i5, 8GB RAM, 512GB SSD, Q670 Chipset | E262957 |
| EloPOS Pack 2 Windows 10, Core i5, 8GB RAM, 512GB SSD, Q670 Chipset | E263167 |
| EloPOS Pack 2 No OS, Core i7, 16GB RAM, 256GB SSD, Q670 Chipset | E263352 |
| EloPOS Pack 2 Window 10, Core i7, 16GB RAM, 256GB SSD, Q670 Chipset | E263537 |
| Optional Peripherals | Part # |
| Elo Backpack 4 (Value Model) | E393754 |
| Elo Backpack 4 (Standard Model) | E393359 |
| Elo Backpack 3.0 Android 8.1 with Google Play Services | E901355 |
| Short Tabletop Stand for 10'' I-Series | E160104 |
| Shelf Mount Bracket (75mm or 100mm VESA) | E043382 |
| 2.5m Cable Kit | E796577 |
