Elo Backpack 4.0 Android Computer Engine

Elo Backpack 4 Android Compute Engine
  • Enterprise Android in a box
  • Powerful Processing
  • Google Mobile Services (GMS)
  • Built for any use
  • Small footprint
  • Universal VESA mount
  • EloView Compatible
  • 2 Year Warranty

Elo Backpack 4 Android Compute Engine

Elo Backpack 4.0 Android Computer Engine

The Elo Backpack 4.0 s a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier. From signage and kiosks to automation controls, pair the Elo Backpack with EloView® or your preferred management tools to simplify the delivery of content, enable remote management capabilities and create a consistent deployment that is cost effective and optimized for commercial use.

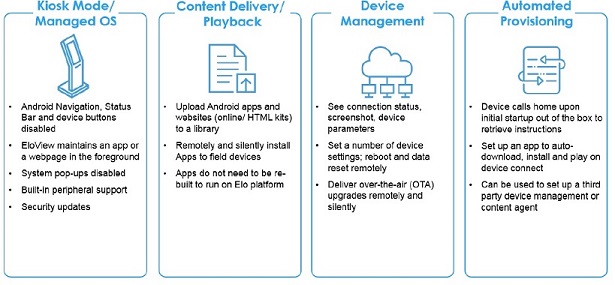

Create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Mobile Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.

  • Specifications
  • Overview
  • Accessories
  • Support
Model Elo Backpack 4.0 Android Compute Engine
Part Number(s) Standard Model, Android 10 - E393359
Standard Model, Android 12 - E754364
Value Model, Android 10 - E393754
Value Model, Android 12 - E792849
Enclosure Color Black
Processor Standard Model: Qualcomm Snapdragon SDA660
Value Model: Rockchip RK3399
Memory 4GB LPDDR4
Storage Standard Model: 64GB
Value Model: 32GB
GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
Wireless 802.11a/b/g/n/ac + Bluetooth 5.0
Via external antenna
I/O Ports HDMI
4x USB 3.0 support
USB-C output
Micro SD slot
GPIO
Ethernet 1x LAN (Gigabit)
DC in
OS Android 10 with Google Play Services (AOSP capable)
Upgrade to Android 12 and planned upgrade to Android 14 are available with an OS 360 subscription
Resolution Standard Model:
USB-C*: 1920 x 1080 @60fps
HDMI: 3840 x 2160 @30fps
* When using USB-C for video, the USB protocols will drop to 2.0 speeds.

Value Model:
USB-C: 3840 x 2160 @60fps
HDMI: 3840 x 2160 @60fps
Power Supply AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz

power adapter (included in accessory box)
Power Consumption (Typical) Standard Model:
On: 9.9W
Off: 0.4W
Sleep: 3.2W

Value Model:
On: 3.2W
Off: 0.3W
Sleep: 2.1W
Mounting Options VESA 75mm and 100mm
Dimensions 4.5" x 5.5" x 1.0" / 114 mm x 139 mm x 25.4 mm
Shipping Box Dimensions Individual System:
Standard Model: 14.6" x 8.3" x 2.4" / 371 mm x 210 mm x 62 mm
Value Model: 14.6" x 8.2" x 2.4" / 371 mm x 208 mm x 62 mm

8 systems/carton:
Standard Model: 17.4" x 10.6" x 16.3" / 441 mm x 270 mm x 413 mm
Value Model: 17.4" x 10.6" x 16.3" / 441 mm x 270 mm x 413 mm
Weight (Unpackaged) Standard Model: 1.3 lbs / 0.59 kg
Value Model: 0.82 lbs / 0.37 kg
Weight (Packaged) Individual System:
Standard Model: 2.9 lbs / 1.3 kg
Value Model: 0.82 lbs / 0.37 kg

8 systems/carton:
Standard Model: 26.0 lbs / 11.8 kg
Value Model: 22.38 lbs / 10.15 kg
Operating Temperature 0°C to 40°C / 32°F to 104°F
Storage Temperature -20°C to 50°C / -4°F to 122°F
Humidity Operating: 20% to 80%
Storage: 10% to 95%
Real-TIme Clock lithium coin cell battery
What's in the Box Backpack 4
North American Power Cable
European Power Cable
1x Power Brick with locking screw
2x Antenna
Quick Install Guide
Regulatory approvals and declarations UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)
Supported Countries Canada, USA, Australia, Japan, South Korea, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Warranty 2-Year
Extended Warranty Options
3 year OS 360 - Elo P/N: E873133
3 year warranty coverage - Elo P/N: E895914
4 year warranty coverage - Elo P/N: E896120
5 year warranty coverage - Elo P/N: E896322
2 year warranty coverage + AUR - Elo P/N: E896513
3 year warranty coverage + AUR - Elo P/N: E896699
4 year warranty coverage + AUR - Elo P/N: E896903
5 year warranty coverage + AUR - Elo P/N: E897104
Backpack 4.0 Compatibility List Backpack 4.0 Compatibility

The Elo Backpack 4 s a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier. From signage and kiosks to automation controls, pair the Elo Backpack with EloView® or your preferred management tools to simplify the delivery of content, enable remote management capabilities and create a consistent deployment that is cost effective and optimized for commercial use.

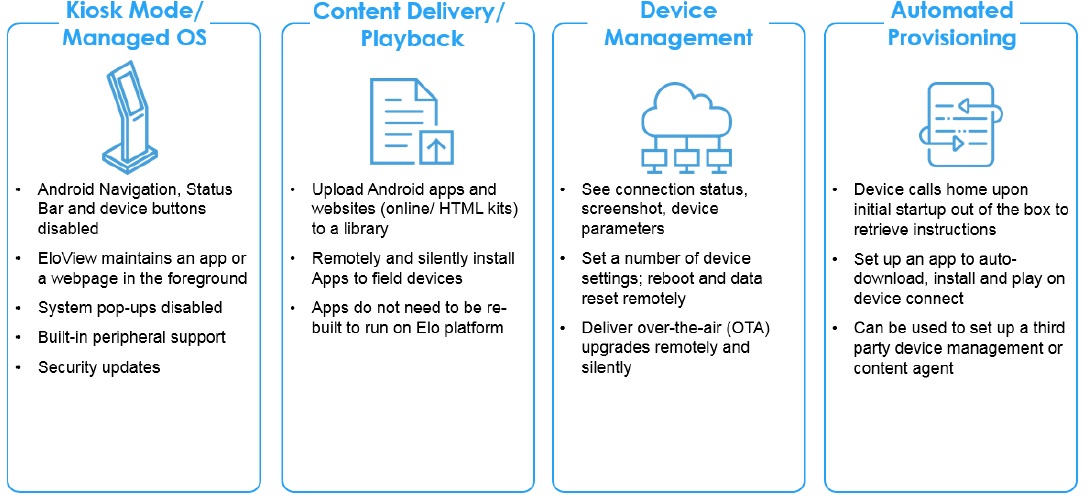

Create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Mobile Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.

Optional Accessories
 Part #
 Replacement power brick kit  E682057


Elo Backpack 4.0 Product Data Sheet

Elo Backpack 4.0 Value Model Dimensional Drawing

Elo Backpack 4.0 Standard Model Dimensional Drawing

Elo Backpack 4.0 Users Guide
