Touch Dynamic Nexus 21.5 Inch All-in-One TouchScreen Computer

Touch Dynamic Nexus 21.5 Inch All-in-One TouchScreen Computer
  • MediaTek (GMS) or Intel Celeron J6412 CPU
  • 4GB of high-speed DDR4 memory (Android)
  • 8GB of high-speed DDR4 memory (Windows)
  • Magnificent 21.5” LCD Widescreen Display
  • Pin Pad Integration (Option)
  • 2D Barcode Scanner (Option)
  • MSR (Option)

Touch Dynamic Nexus 21.5 Inch All-in-One TouchScreen Computer

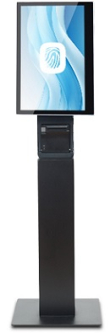

Touch Dynamic Nexus 21.5 Inch All-in-One Kiosk TouchScreen Computer

This innovative and powerful Touch Dynamic Nexus All-in-One solution, can be ordered with two different solutions. We have MediaTek CPU supporting Android 13 with GMS (Google Mobile Services), or an Intel Celeron J6412 supporting all OS including Windows, Linux, and Android 13. Enjoy a seamless interactive experience with a sleek 21.5" LCD Widescreen Display with Capacitive Touch. Additionally, it offers rear display options, multiple payment integrations, and more. Plus, the Kiosk podium design provides space-saving convenience. Make the smart choice for your modern business needs.

  • Specifications
  • Overview
  • Accessories
  • Support
Tech Type Android Windows
CPU / Processor Mediatek MT8390 / G700 up to 2.2 Ghz Intel Celeron J6412 up to 2.6 Ghz
Memory 4GB DDR4 8GB DDR4
Storage 64GB eMMC 128GB eMMC
Supported OS & GMS 13 w. GMS (Google Mobile Services) 10 IoT, Windows 11 Pro, Windows 11 IoT GAC, Linux, Android 13 w.o GMS (Google Mobile Services)
I/O Ports 4 x USB 2.0 1 x USB-C 3.0 with PD* (with video)
1 x custom miniDP (convertible to HDMI or VGA)
1 x Serial (RJ45/DB9) w. PD*
1 x LAN RJ45
1 x Cash Drawer RJ-11
1 x Power Connector (4-PIN w. lock, barrel)
(option) 1 x Audio-out Jack		 2 x USB 3.0, 2 x USB 2.0
1 x USB-C (data only)
1 x custom miniDP (convertible to HDMI or VGA)
1 x Serial (RJ45/DB9) w. PD*
1 x LAN RJ45
1 x Cash Drawer RJ-11
1 x Power Connector (4-PIN w. lock, barrel)
Wireless Connectivity WiFi-6
Bluetooth 5.2		 Intel WiFi-6 (option)
Bluetooth 5.2 (option)
Audio (option) 1 x 3W Integrated Speaker 1 x 3W Integrated Speaker
Power 36W / 12V
Display 15.6” Widescreen (1920 x 1080)
Touch Screen True-Flat PCAP Multi-Touch
Peripheral (options) 3-Track MSR (USB)
2D Barcode Scanner (USB)
PIN Pad brackets
11.6” or 15.6” Rear Displays w. Touch
Wall Mount VESA, 75 x 75mm
Dims (w.o. base) 14.69” W x 11.69” H x 7.40” D
Warranty

This innovative and powerful Touch Dynamic Nexus All-in-One solution, can be ordered with two different solutions. We have MediaTek CPU supporting Android 13 with GMS (Google Mobile Services), or an Intel Celeron J6412 supporting all OS including Windows, Linux, and Android 13. Enjoy a seamless interactive experience with a sleek 21.5" LCD Widescreen Display with Capacitive Touch. Additionally, it offers rear display options, multiple payment integrations, and more. Plus, the Kiosk podium design provides space-saving convenience. Make the smart choice for your modern business needs.

Accessory Part #


Touch Dynamic Nexus Kiosk 21.5" Data Sheet

Touch Dynamic Nexus Kiosk 21.5" Interfaces

Touch Dynamic Nexus Kiosk 21.5" Dimensional Drawing
