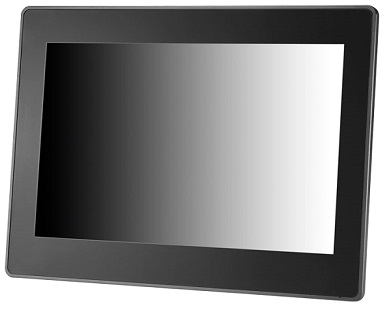

12.1 Inch IP65 Rugged All-Weather Sunlight Readable Panel PC

Xenarc CPC-1211 12.1 Inch IP65 Rugged All-Weather Sunlight Readable Panel PC
  • IP65 / NEMA4 Rated Water and Dust Resistance
  • Intel Atom E3845 Quad-Core 1.91Ghz Automotive Grade CPU
  • 12.1 Inch 1280 x 800 IPS Wide Viewing Angle Display
  • 1,000NIT Sunlight Readable with Long Life LED Backlight
  • Toughened Projected Capacitive Multi-Touch Touchscreen
  • Optical Bonding, Anti-Reflective and Anti-Fingerprint Coating
  • 2G/3G/4G LTE Cellular Internet
  • 802.11 B/G/N/AC WiFi, Bluetooth 4.0
  • Dual Gigabit Ethernet
  • USB 3.0, RS232 Serial Ports
  • Automatic ACC Shutdown Control
  • 30 days No dead Pixel Guarantee

Xenarc CPC-1211 12.1 Inch IP65 Rugged All-Weather Sunlight Readable Panel PC

Xenarc CPC-1211 12.1 Inch IP65 Rugged All-Weather Sunlight Readable Panel PC

The Xenarc CPC1211 12.1" Rugged All-In-One Panel Car PC is the most versatile and all-encompassing product in Xenarc Technologies’ line up of products.  This 16:9 1000 NIT High Bright Panel Car PC is IP65 and IK08 rated and includes an optically bonded capacitive touchscreen, making it ideal for any harsh industrial environment.  It utilizes Intel's automotive and industrial grade, extended temperature E3845 Quad-Core 1.91Ghz CPU with wide operating temperature range.  Its built-in CAN bus ports allows interfacing with vehicles.  It's automatic ACC shut down controll allows the computer to automatically shut down when the ignition is turned off, perfect for automotive and boat applications.  The 12.1 inch touch panel is optically bonded to the LCD panel, eliminating the air gap between the two, increasing clarity, contrast, and durability.
List View
Grid View

  • Specifications
  • Description
  • Features
  • Package Contents
  • Support
Model TWXN-CPC1211
Processor Intel Atom E3845 Automotive Grade Processor (4 Cores, 2M Cache, 1.91Ghz)
memory 8GB RAM DDR3L-1333
Internal Storage 256GB M.2 2280 Solid State Drive
External Storage Micro SD Card Slot x 1
Operating System Windows 10 IOT 2019 LTSC
Display 12.1-Inch Automotive Grade 1280 x 800 IPS LCD
Display Brightness 1000 cd/m² Sunlight Readable
Display Contrast Ratio 1000:1
Display Viewing Angle 178° Horizontal, 178° Vertical
Display Response Time 25ms (Typ.)
Sim Card 1.8/3.3V SIM Card
CellulartNetwork Support 2G/3G/4G - GSM(B2/5), UMTS(B2/4/5), LTE-FDD(B2/4/5/12/13/17/28)
Bluetooth Bluetooth 4.0
Wi-Fi 802.11 A/B/G/N/AC (2.4G and 5G)
Navigation GPS
USB USB 3.0 x 4
Serial Port RS232 Serial port x 2
GPIO 8 Bit Programmable GPIO x 1
CAN Bus CAN Bus x 2
Audio Built-in Waterproof Speaker x 2, Audio Input x 1, Audio Output x 1
Video Output HDMI Output x 1
G-Sensor Built-in G-Sensor
Power switch Built-in Power Switch x 1, Remote Power Switch x 1, ACC Shutdown Control x 1
Operating Voltage Range DC 9V ~ 36V
Power Consumption  ≤ 40W
Operating Temperature -22°F ~ 185°F (-30°C ~ 85°C)
Storage Temperature -22°F ~ 185°F (-30°C ~ 85°C)
Relative Humidity 5% ~ 95%
Vibration Operating Random Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard
Shock Operating Shock Test, 10G peak acceleration (11ms duration), IEC 60068-2-27 standard
MTBF 55,000 Hours or > 6.2 Years of continuous operation
Dimension (mm) 312W x 230H x 67.2D
Weight (lb) 7.05
Warranty 36 Month/3 Year Warranty
30 days No dead Pixel Guarantee

The Xenarc CPC1211 12.1" Rugged All-In-One Panel Car PC is the most versatile and all-encompassing product in Xenarc Technologies’ line up of products.  This 16:9 1000 NIT High Bright Panel Car PC is IP65 and IK08 rated and includes an optically bonded capacitive touchscreen, making it ideal for any harsh industrial environment.  It utilizes Intel's automotive and industrial grade, extended temperature E3845 Quad-Core 1.91Ghz CPU with wide operating temperature range.  Its built-in CAN bus ports allows interfacing with vehicles.  It's automatic ACC shut down controll allows the computer to automatically shut down when the ignition is turned off, perfect for automotive and boat applications.  The 12.1 inch touch panel is optically bonded to the LCD panel, eliminating the air gap between the two, increasing clarity, contrast, and durability.  Furthermore, because this 12.1" rugged panel pc is water tight and air tight, advanced optical bonding will not allow ambient humidity to affect the clarity or viewability.  The CPC1211 12.1" rugged panel PC outperforms all other automotive grade panel Car PC's with a wider operating temperature range of -30C ~ 85C (-22F ~ 185F) and uses an IPS panel (In-Plane-Switching), which provides a wider viewing angle, consistent and accurate colors from all viewing angles, clearer images, and stable response times.  A high contrast ratio of 1000:1 provides crisper images and vivid colors, even in direct sunlight.

The CPC1211 was designed for those looking for a rugged, bright, all-in-one panel Car PC, usable in just about any environment or application.

The versatility of the CPC1211 extends beyond its usability in many different environments.  With the included waterproof cables, the CPC1211 is IP65 on all sides.  The casing of the CPC1211 is designed to be used as a stand-alone panel Car PC as well as a panel mounted Car PC.  VESA standard mounting holes on the back further provide users with a variety of mounting options.  The IK08 rating makes the PPC1211 vandal resistant and shock resistant.

  • IP65 / NEMA4 Rated Water and Dust Resistance
  • Intel Atom E3845 Quad-Core 1.91Ghz Automotive Grade CPU
  • 12.1 Inch 1280 x 800 IPS Wide Viewing Angle Display
  • 1,000NIT Sunlight Readable with Long Life LED Backlight
  • Toughened Projected Capacitive Multi-Touch Touchscreen
  • Optical Bonding, Anti-Reflective and Anti-Fingerprint Coating
  • 2G/3G/4G LTE Cellular Internet
  • 802.11 B/G/N/AC WiFi, Bluetooth 4.0
  • Dual Gigabit Ethernet
  • USB 3.0, RS232 Serial Ports
  • GPIO and CAN BUS
  • Built-in GPS and G-Sensor
  • Built-in and Remote Power Switches
  • Automatic ACC Shutdown Control
  • Chip Monolithic Ceramic Capacitors for Improved Durability
  • VESA 75mm Mounting Holes
  • Rugged Aluminum and Stainless-Steel enclosure
  • Supports 9V DC ~ 36V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • Vibration / Shock Resistant
  • IK08 Impact Resistant
  • ROHS Compliant
  • 36 Month/3 Year Warranty
  • 30 Day No dead Pixel Guarantee

Package Contents

  • 2M Waterproof Power Lead with Remote Power Switch
  • 2M Waterproof Dual USB Cable x 2
  • 2M Waterproof RJ45 Cable
  • 2M Waterproof DB9 Serial Port Cable
  • 5M Waterpoof HDMI Cable
  • 2M M16 Waterproof RJ45 Cable
  • 2M M16 Waterpoof GPIO Cable

TWXN-CPC1211 Data Sheet

TWXN-CPC1211 Dimensional Drawing
