19 Inch Panel Mount IP66 Touch Screen Monitor

19 Inch Panel Mount IP65 Touch Screen Monitor
  • 19” TFT LCD Touch Screen Display
  • Resistive or Projected Capacitive Touch
  • Brightness 400 or 1000 nits
  • True-Flat Front Bezel IP66
  • Support VGA + DVI + HDMI (optional)
  • Mounting Instructions

19 Inch Panel Mount IP65 Touch Screen Monitor

19 Inch Panel Mount IP66 Touch Screen Monitor

  • Specifications
  • Overview
  • Support
Display
Model Name TWAP-ETPM-S19
Size/Type 19" TFT
Resolution (pixels) 1280 x 1024
Number of Colors 16.7M
Touch Type Resistive or Projected Capacitive Touch
Brightness (cd/m2) 400 or 1000 nits
Backlight lifetime 50000 hrs
Viewing Angle 178°H/160°V
System
VGA 1
DVI or DP (Options) 1
HDMI 1
OSD Control Rear
Touch 10 points touch (PCAP)
Power
Power Input DC 12V/DC 10~30V (Options)
Power AC Adapter
Consumption <35W
Mechanical
Construction Aluminum Die-casting Chassis
IP rating Front IP66
Touch (oprtion) Resistive or Projected Capacitive Touch
Color Black
Mounting Panel mounting, VESA 75 x 75
Dimension (mm) 453 (L) x 375.5 (H) x 60.3 (D)
Net weight 5.8 kg
Environment
Operating Temperature -20°C ~ 70°C
Storage Temperature -20° ~70°C
Storage humidity 10 to 90% @40°C, Non-condensing
Without touch screen
Certification CE/FCC Class A
Warranty Two years limited parts and labor warranty
In the Box
  1 x Touch Monitor
  1 x VGA Cable
  1 x Touch Cable
  1 x AC Adapter
  1 x Power Cord
  4 x Panel-mount mounting clips
  • 19” TFT LCD Touch Screen Display
  • Resistive or Projected Capacitive Touch
  • Brightness 400 or 1000 nits
  • True-Flat Front Bezel IP65
  • Support VGA + DVI + HDMI (optional)

TWAP-ETPM-S19 Data Sheet

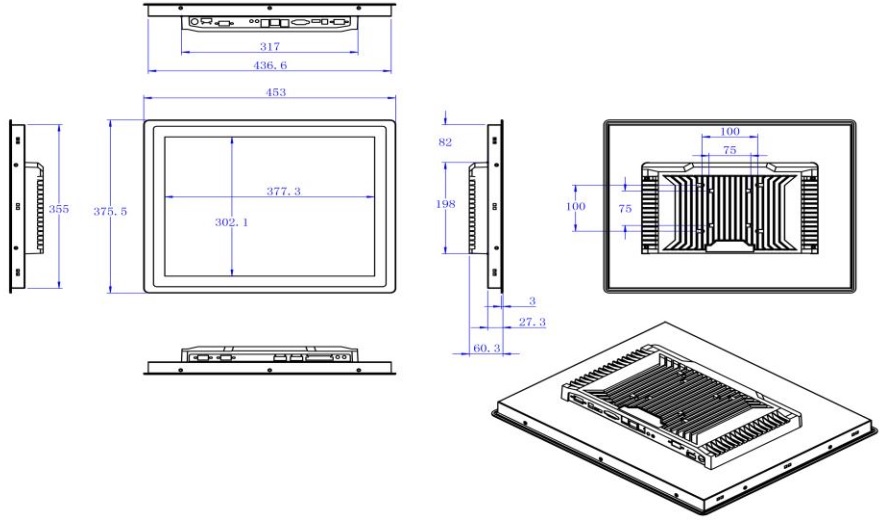

TWAP-ETPM-S19 Mechanical Drawing
