49" Ultra Slim Climate Controlled Outdoor Kiosk PC

2.5" Ultra Slim Climate Controlled Outdoor Kiosk PC
  • 49” Outdoor Weather-Proof Kiosk PC
  • Rainproof Projected Capacitive Touch (optional)
  • -40° to 60°C Wide Temperature LCD
  • 2500nits High Brightness
  • Vandal Resistant
  • Choice of Landscape or Portrait Style
  • For options click the ADD TO CART button

21.5" Ultra Slim Climate Controlled Outdoor Kiosk PC

49" Ultra Slim Climate Controlled Outdoor Kiosk PC

  • Specifications
  • Overview
  • Support
Display
Model Name EPC-K496 / K496P
Size/Type 49"
Resolution (pixels) 1920 x 1080 Full HD
Response Time 6 m/sec
Brightness (cd/m2) 2500 nits Standard
Display Style Landscape or Portrait
Viewing Angle 176°H / 176°V
Aspect Ratio 16:9
Glass 6mm AR coated Tempered Glass
System
Processor Intel Core i3/i5/i7 - 6th gen CPU
Chipset NVidia Ion2 support 1080p
Memory 8GB RAM, 16GB Max
Storage 120GB SSD, 256GB Max
LAN 1
USB 4 x USB 3.0 (1 used by touch)
HDMI 1
Audio In/Out
Multi-Touch Rainproof PCAP (optional)
Wi-Fi 1 x Wi-Fi Built-in w / External Antenna
Heating/Cooling Forced Air Fan Cooling + Heater
OS Support Windows, Android, Linux
Vandal Resistant Included
Locks with the enclosure
Scratch resistant paint
6mm vandal-proof tempered glass
No exposed cables, controls or switches
Power
Power Input AC100~240V
Mechanical
Color Black (Standard)  White (Optional)
Construction Aluminum Chassis
IP rating Front IP66
Mounting Wall mounting
Dimension (mm)
1235 x 850 x 120 (Landscape)
765 x 1355 x 120 (Portrait)
Net weight 80kg
Environment
Operating Temp. -30°~40°C
Storage Temp. -20°~80°C
Storage humidity 20 to 80% @40°C, Non condensing
Certification CE/FCC Class A
  • 49” Outdoor Weather-Proof Kiosk PC
  • Rainproof Projected Capacitive Touch (optional)
  • -40° to 60°C Wide Temperature LCD
  • 2500nits High Brightness
  • Vandal Resistant
  • Choice of Landscape or Portrait Style
  • For options click the ADD TO CART button

TWAP-EPC-K496P Data Sheet

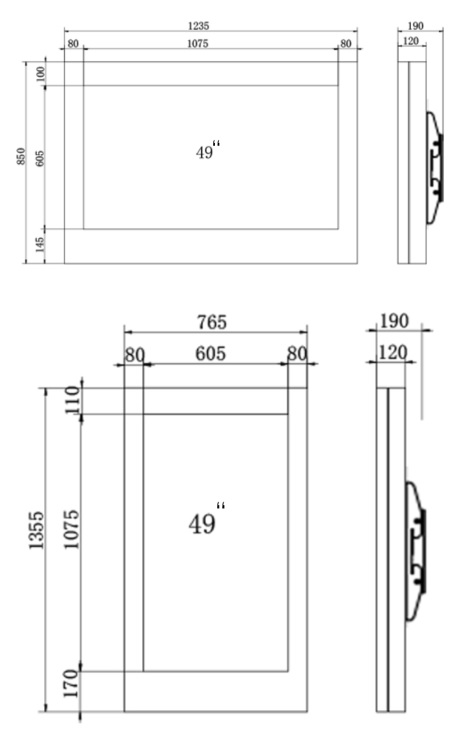

TWAP-EPC-K496P Mechanical Drawing
