MicroTouch MP-000-AA2 Android Media Player

MicroTouch MP-000-AA2 Android Media Player
  • Processor
    • Rockchip RK3399, Dual-core Cortex-A72 up to 1.8GHz,
    • Quad-core Cortex-A53 up to 1.4GHz
  • Ram: 4GB
  • OS: Android 9.0 non-GMS
  • Connectivity: Wi-Fi/Bluetooth
  • Warranty: 3 year

MicroTouch MP-000-AA2 Android Media Player

MicroTouch MP-000-AA2 Android Media Player

The MicroTouch MP-000-AA2 Android media player transforms touchscreen monitors and static signage displays into a high performance, commercial-grade, interactive system. The Rockchip powered solution can seamlessly run video and audio content, interactive HTML web pages and Android Apps giving you a turnkey solution for your digital content or interactive installation.

  • Specifications
  • Overview
  • Accessories
  • Support
Model MP-000-AA2 Android Media Player
Processor Rockchip RK3399, Dual-core Cortex-A72 up to 1.8GHz, Quad-core Cortex-A53 up to 1.4GHz
GPU Mali-T860 MP4
System Memory 4GB LPDDR4
Storage Device 32GB eMMC
Wi-Fi & Bluetooth 802.11 a/b/g/n/ac, Bluetooth 4.0 (Support BLE)
I/O Ports
Serial Port -
USB Port 2 x USB 2.0 Type A, 1 x USB 3.0 Type A, 1 x USB 3.0 Type C (Support DP 1.2 5V/1A)
LAN Port 1 x RJ45 Giga LAN
Video Port 1 x HDMI 2.0 (Main Display, Support 4K@60Hz)
Audio Port 1 x Earphone
SD Slot 1 x Micro SD Slot (SDHC 2.0 support)
GPIO 1 x GPIO
Power Input 12V 60W External Power Adapter
Power Output -
Speaker -
Physical Properties
Material Plastic, SECC Metal
Housing Color Silver
Dimensions (W x H x D) mm 164.75 x 105.5 x 23.9 mm
Net Weight (kg) 0.37 kg
Gross Weight (kg) 7.80 kg (10 units)
Carton (W x H x D) mm 440 mm x 325 mm x 310 mm
Safety
Certifications UL, CB, FCC, CE
Environment
Operating Temperature 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing
Storage Temperature -20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing
What's in the Box

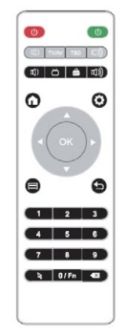

  Media Player, HDMI Cable, Power Adapter, Power Cable, IR Remote, WiFi Antenna, MP-BRKT-A1 Wall-Mount and Screw
Optional Peripheral
EU Power Cable EPC-5331021201FI
UK Power Cable UKPC-5331010207FI
Digital Signage Mount Kit MP-BRKT-B1
Warranty 3 year warranty

The MicroTouch MP-000-AA2 Android media player transforms touchscreen monitors and static signage displays into a high performance, commercial-grade, interactive system. The Rockchip powered solution can seamlessly run video and audio content, interactive HTML web pages and Android Apps giving you a turnkey solution for your digital content or interactive installation.

Accessory Part #
EU Power Cable EPC-5331021201FI
UK Power Cable UKPC-5331010207FI
Digital Signage Mount Kit MP-BRKT-B1

MicroTouch MP-000-AA2 Product Brochure

MicroTouch MP-000-AA2 User Manual

MicroTouch MP-000-AA2 Schematic Drawing

MicroTouch Drivers
