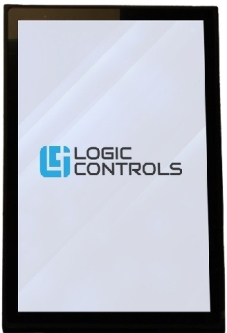

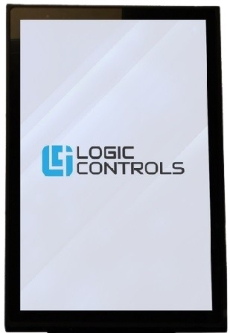

Logic Controls Pro Self Service Kiosk

Logic Controls Pro Self Service Kiosk

Stand and Base Sold Separately
  • Supports Windows/Chrome/Linux
  • Intel i5 Processor (12th Generation)
  • 21.5" or 27" True-Flat PCAP multi-touch screen

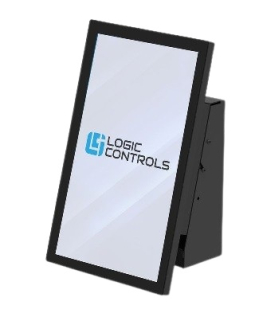

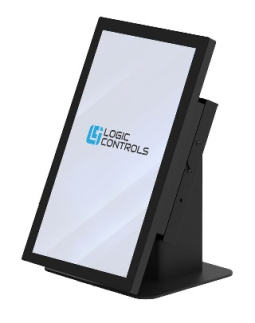

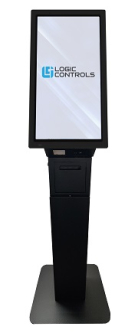

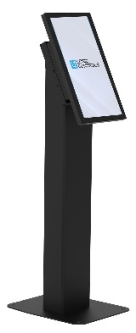

  • Pedestal, Wall or Counter Mount Compatible (Sold Separately)

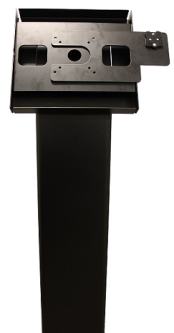

  • Optional Printer or PinPad Arm
  • Heat Resistance up to 140° F (60° C)
  • Stand and Base Sold Separately
  • 3-Year Warranty

Logic Controls Pro Self Service Kiosk

Logic Controls Pro Self Service Kiosk

Increase efficiency while managing labor costs with the Logic Controls Pro self-service kiosks.  From self-order to self-checkout, to visitor check-in, ticket purchases, interactive information and more, out self-service hardware options to help you create the perfect interactive experience.

The touchscreen Logic Controls Pro 21.5" or 27" Customer Kiosk features a powerful Intel processor to meet the needs of the most demanding applications, flexible mounting options, and an optional printer and pinpad arm to complete your checkout experience.

  • Specifications
  • Overview
  • Support
System Logic Controls Pro 21.5" Self Service Kiosk
Processor Intel i5 (12th Generation)
Memory 8GB DDR
Storage Removable 128GB 2.5" SATA SSD
Display
Size and Resolution 21.5" or 27" 1920 x 1080
Touch Screen True-Flat PCAP multi-touch
I/O Ports
Display 1 x VGA
USB
2 x USB 3.0
4 x USB 2.0
Serial Port External 6, COM 1 with 5V/12V Power Output on 9 Pins, B:OS COM2~3 RJ-45 , Full Signal
COM4 RJ-11, Only TX/RX, 12V Power Output, Reserved for CDP COM5, Full Signal
COM6 RJ-45, Only TX/RX, 5V Power Output, Reserved for MSR
Power DC-IN 3 Pin DIN Jack
Communication
 LAN 1 x Gigabit Ethernet (RJ-45)
Power Supply
Power Supply Adapter 24V, 2.5A
Audio
Audio 1 x Line-out
Certificate
EMC & Safety  FCC Class A, CE Mark, LVD
Environmental
Operating temperature 0°C ~ 60°C (32°F ~140°F)
Storing temperature -20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity 20% ~ 85% RH non-condensing
Dimensions
(21.5" Model) L x W x H 530.64 x 322.1 x 47.9 (mm)  20.9 x 12.7 x 1.9 (in) without stand
(21.5" Model) Weight 71.7kg (15.8 lbs.) without stand
(27" Model) L x W x H 651 x 402 x 60 (mm)  25.63 x 15.83 x 2.36 (in) without stand
(27" Model) Weight 9.5kg (20.9 lbs.) without stand
Mount
Floor VESA 100 x 100
Counter VESA 100 x 100
OS Supported
OS Supported Windows 10 (Windows 11 Optional)/Linux/Chrome

Increase efficiency while managing labor costs with the Logic Controls Pro self-service kiosks.  From self-order to self-checkout, to visitor check-in, ticket purchases, interactive information and more, out self-service hardware options to help you create the perfect interactive experience.

The touchscreen Logic Controls Pro 21.5" or 27" Customer Kiosk features a powerful Intel processor to meet the needs of the most demanding applications, flexible mounting options, and an optional printer and pinpad arm to complete your checkout experience.

  • Supports Windows/Chrome/Linux
  • Intel i5 Processor (12th Generation)
  • 21.5" or 27" True-Flat PCAP multi-touch screen
  • Pedestal, Wall or Counter Mount Compatible (Sold Separately)
  • Optional Printer or PinPad Arm
  • Heat Resistance up to 140° F (60° C)
  • Stand and Base Sold Separately
  • 3-Year Warranty

Logic Controls Pro Self Service Kiosk Product Data Sheet
