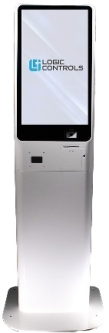

Logic Controls Elite Self Service Kiosk

Logic Controls Elite Self Service Kiosk
  • Supports Windows/Chrome/Linux
  • Intel i3 Processor (Optional i5)
  • 27" 1920 x 1080 resolution screen
  • True-Flat PCAP multi-touch screen
  • Built-in scanner/speaker/printer
  • Heat Resistance up to 140 F (60 C)
  • 5-Year Warranty

Logic Controls Elite Self Service Kiosk

Logic Controls Elite Self Service Kiosk

The touchscreen Logic Controls Elite 27-inch Self Service Customer Kiosk comes standard with the essentials you need for retail and restaurant self service checkouts, along with a sleek modern design that adds a modern touch to any environment.
List View
Grid View

  • Specifications
  • Overview
  • Support
System Logic Controls Elite 27" Self Service Kiosk
Processor Intel i3 (Optional i5)
Memory 4GB LPDDR4X (additional available)
Storage 128GB SSD
Display
Size and Resolution 21.5" 1920 x 1080
Touch Screen True-Flat PCAP multi-touch
I/O Ports
USB
External 2 (USB 2.0)
Internal 5 (USB 2.0 x 5 Reserved for MSR. SCR, iButton/Camera/NFC/2D Barcode/Printer
Serial
External 3 (COM2~3 RJ-45, Full Signal, COM5 Reserved for Printer
Internal (COM6 RJ-45, Only Tx/Rx, 5V Power Output, Reserved for MSR, IC Card
LAN Gigabit Ethernet x 1, RJ-45
Power DC-IN 3 Pin DIN Jack
Power Supply
Power Supply Adapter 24V, 6.35A
Communication
 WLAN+BT 802.11zx, BT5.2
Peripheral (Standard)
MSR 3-Track MSR (USB)
Fingerprint Fingerprint reader (USB)
iButton iButton (USB)
Certificate
EMC & Safety  FCC Class A, CE Mark, LVD
Environmental
Operating temperature 0°C ~ 60°C (32°F ~140°F)
Storing temperature -20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity 20% ~ 85% RH non-condensing
Dimensions (L x W x H)
System 430 x 880 x 140 (mm), 16.9 x 34.6 x 5.5 (in)
Pedestal 430 x 870 x 140 (mm), 16.9 x 34.2 x 5.5 (in)
Baseplate 600 x 10 x 450 (mm), 23.6 x 0.4 x 17.7 (in)
Baseplate (Counter Top) 600 x 10 x 410 (mm), 23.6 x 0.4 x 16.1 (in)
Weight
System 15,000g, 33.06 lbs
Pedestal 13,000g, 28.66 lbs
Baseplate 20,000g, 44.09 lbs
OS Supported
OS Supported Windows 10, Linux/Chrome

The touchscreen Logic Controls Elite 27-inch Self Service Customer Kiosk comes standard with the essentials you need for retail and restaurant self service checkouts, along with a sleek modern design that adds a modern touch to any environment.

  • Supports Windows/Chrome/Linux
  • Intel i3 Processor (Optional i5)
  • 27" 1920 x 1080 resolution screen
  • True-Flat PCAP multi-touch screen
  • Built-in scanner/speaker/printer
  • Heat Resistance up to 140 F (60 C)
  • 5-Year Warranty

Logic Controls Elite Self Service Kiosk Product Data Sheet
