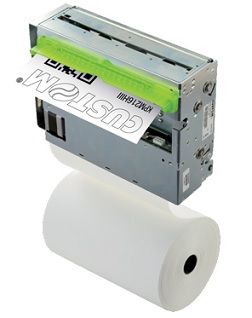

Custom America KPM216HIII A4 Document Printer

New latest generation processor
New printing head with higher printing quality
Speed > of 200mm/sec
Illuminated paper bezel (standard equipment)
Easy switch from horizontal to vertical setting
Retracting, roll holding or fan fold in vertical position:the printer has a thickness of only 8cm!
RS232+USB+Ethernet on board: 3 communication interfaces (standard equipment)
Updates from remote thanks to Ethernet interface
All international fonts on board
1D and 2D printing
PrinterSet software : a tool for a complete, easy and quick management of your printer
CPT software: CustomPowerTool for the personalization of your tickets/receipts
Dot-saving function
Power supply bought separately
Or use cable included to connect to terminals of an existing power supply

List View

Grid View

$1,416.50

$1,450.24

Printing Method	Thermal with fixed head
Number of dots	200 DPI Model: 8 dots/mm 300 DPI Model: 12 dots/mm
Columns	43 - 60 - 76
Resolution	200 DPI Model: 203 dpi 300 DPI Model: 300 dpi
Printing (mm/sec)	200 mm/sec
Character set	PC437, PC850, PC860, PC863, PC865, International
Supported Barcode	1D and 2D
Printing Format	Normal, height and width from 1x to 8x, reverse, underlined, script, bold
Printing Direction	Straight, 90°, 180°, 270°
Paper width	210 mm / 216 mm (A4" - US Letter)
Paper weight	from 58 to 78 g/m²
Paper thickness	from 63 to 85 μm
Roll Dimension	Ø 180mm max
Emulation	Custom/POS
Interfaces	RS232 + USB + Ethernet
Data Buffer	19 KB
Flash Memory	2MB internal flash and 8MB external SPI flash
RAM Memory	128Kbytes
Graphic Memory	200 DPI Model: 5 logos with 1600 x 327 dots 300 DPI Model: 5 logos with 2368 x 327 dots
Drivers	Windows (32/64 bit) – only on request WHQL and silent installation; Linux (32/64 bit); Android; iOS
Software Tools	PrinterSet, CustomPowerTool, Status Monitor
Power supply	24 Vdc±10%
Medium consumption	2.5 A (12,5% dots turned on)
Head Life	100Km / 100M pulses
MCBF	300,000 cuts
Operating temperature	0°C + 50°C
Dimensions	270 x 190 x 90 mm
Weight	3.8 Kg
In the Box	Device, connection cable+external low paper sensor board, additional fixing brackets with screws, power supply cable

New latest generation processor
New printing head with higher printing quality
Speed > of 200mm/sec
Illuminated paper bezel (standard equipment)
Easy switch from horizontal to vertical setting
Retracting, roll holding or fan fold in vertical position:the printer has a thickness of only 8cm!
RS232+USB+Ethernet on board: 3 communication interfaces (standard equipment)
Updates from remote thanks to Ethernet interface
All international fonts on board
1D and 2D printing
PrinterSet software : a tool for a complete, easy and quick management of your printer
CPT software: CustomPowerTool for the personalization of your tickets/receipts
Dot-saving function
Power supply bought separately
Or use cable included to connect to terminals of an existing power supply

Accessories	Part #
Power Supply 24V 9.4A 225W SPS-225P-24	964GE010000013
Kit Roll Holder Paper+Pivot KPM216H	974AS010000303
Pivot Roll L216 D25 PMCM216	21300000000337
Blocking Ring Roll Paper	21400000000172
Serial RS232 Cable 1.8MT	26500000000352
USB Cable A-B 1.8MT	26500000000356
Cable + Board NPE Sensor KPM216H	26300000000602
Consumables	Part #
Thermal Roll L210 DE140 D125 74GR	67300000000321
Thermal Roll L216 DE140 D125 70GR	67300000000327
